Mounting method
MINI internal blind montage
MINI free-hanging roller shutters offer extremely simple, practical and reliable systems of non-invasive assembly. The installation of the roller blind is a classic and uncomplicated procedure that anyone can handle.
Installation by sticking
The blind is glued to the top of the window frame with a durable foam adhesive tape. A very fast and non-invasive method. It is available in roller shutters type: MINI, MICRO, MICRO S

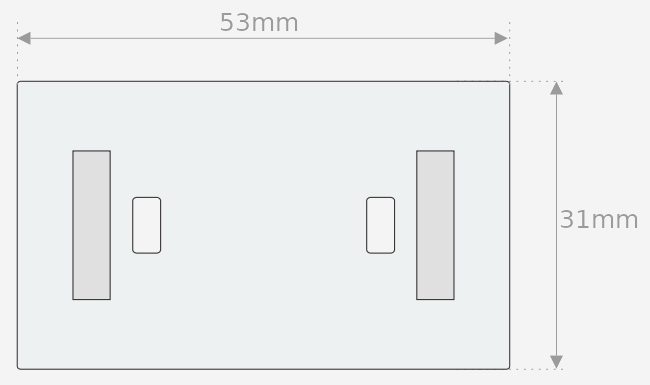

For sticking we use the following fastening element:
Assembly by screwing
The classic method of mounting the roller shutter, in the case of mounting to a glazing bead, does not void the window warranty. It is available in roller shutters type: MINI, MICRO

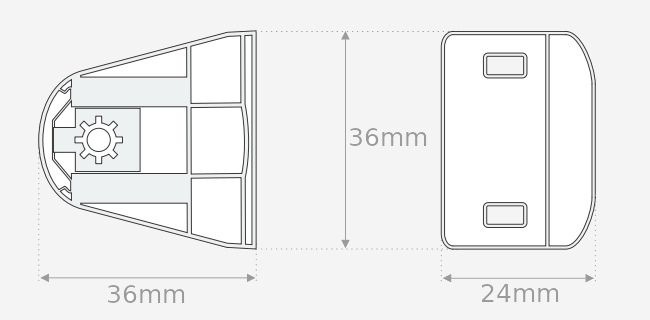

Additional mounting element in not necessary. Just screw through holes in the mounting element visible on the right side of the photo:
Standard hanger
The blind is hung on the window frame with hangers (plastic or metal). extremely fast and non-invasive assembly method. It is available in roller shutters type: MINI, MICRO S
We hang the roller blind with:
Extended hanger
The blind is hung on the window frame with hangers (plastic or metal). extremely fast and non-invasive assembly method. It is used for mounting on windows with a vent (the hanger is 79mm long)
*On the picture a string side guide was used.

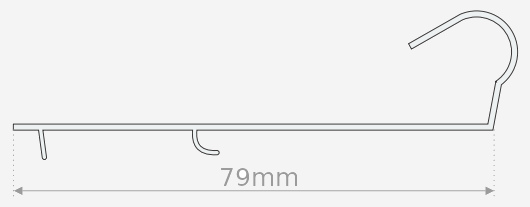

If it is necessary to hang the roller shutter lower than in the case of the standard hanger, we use an extended hanger:
