The proper way to get dimensions

Measuring instructions Roller blind MICRO

Long and trouble-free operation of the window shutter depends not only on the high quality of its workmanship, but also on its correct fitting and assembly. For the diaphragm to fit perfectly, the chosen location must be correctly and carefully dimensioned.
The following auxilary drawings must be strictly adhered to.

Screwed - window recess

If you have unusual glazing beads, e.g. "rounded", please indicate them in the "Model" field when placing the order! we will prepare for you special guiding strips that perfectly adhere to the rounded surface of the glazing beads. (see picture below)

glazing guide profile
CLASSIC
glazing guide profile
ROUNDED

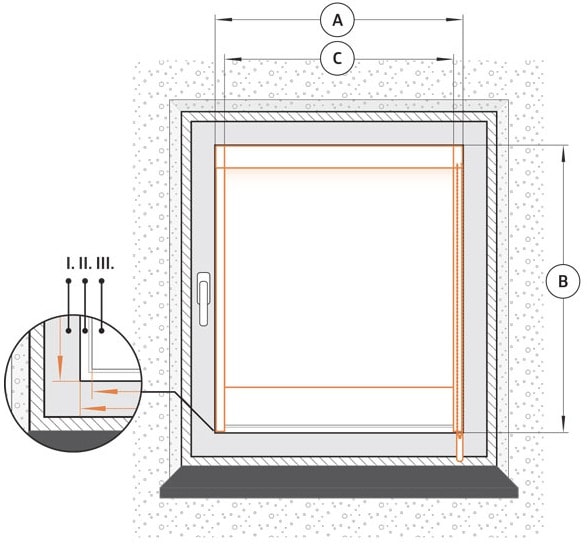

  • A - WIDTH This is the width of the glass together with glazing beads. (We take the measurement in the places where the glazing bead joins the window frame).
  • B - HEIGHT This is the width of the glass together with glazing beads. (We take the measurement in the places where the glazing bead joins the window frame). *in the 100% blackout version, the cassette holds up to 180cm of fabric.
  • C - AUXILIARY DIMENSION GLASS WIDTH

    *The MICRO roller blind works in the light of the glass in the space between the glazing beads. (When taking the dimension, please provide the third auxiliary dimension, which is the width of only the glass opening, measure the dimension of the glass WITHOUT GASKETS) we take the dimension of the GLASS PANE only! this will allow for proper and free operation of the roller shutter. The auxiliary dimension is given in the additional field under the dimensions.

  • I - Window frame
  • II - glazing bead
  • III - Glass

*All dimensions are given in millimeters
