Box dimensions

Technical data

Maximum dimensions supported by boxes
Box type Max width Max height
105 3500mm* 4000mm*
125 5000mm* 5000mm*

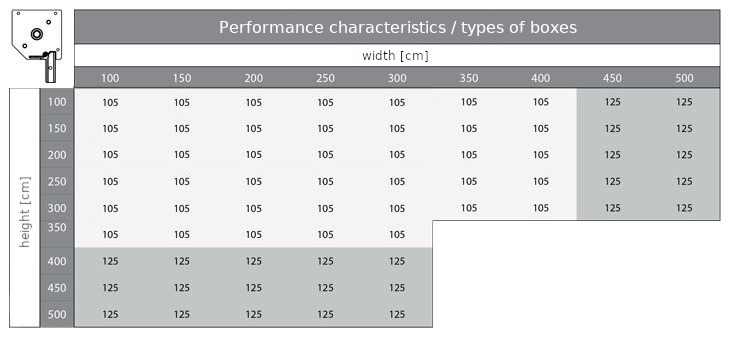

Please select the appropriate box, no smaller than in accordance with the table below:

box model

HEMA - Box 105

Box 105 - flush mountedBox 105 - flush mounted
ZIP integrated guideZIP integrated guide
Bottom railBottom rail

HEMA - Box 125

Box 125 - flush mountedBox 125 - flush mounted
ZIP integrated guideZIP integrated guide
Bottom railBottom rail
